Victoreen / Fluke 190 Survey Meter + 489-110E Pancake Probe

Model:  Victoreen 190

Detection Range:  0 - 2,000,000 C/min

0 - 500 mR/h (0 - 5 mSv/h)

Low/Medium Level Radiation / Radioactive Contamination Detection (α/β/γ)

Condition:  Used, Verified 2024 & Operational, Original Parts, Refurbished

Power Supply:  Requires 4, 9v Batteries (Not Included).

Specs:

Range: 0 - 500 mR/h         (0 - 5 mSv/h)          0 - 2M C/min 0 - 33K C/sec

uR/h:

X1] 0 - 10 uR/h (0-0.10 uSv/h)

X10] 10 - 100 uR/h (0-1 uSv/h)

X100] 100 uR/h - 1 mR/h (0-10 uSv/h)

mR/h

X 1]     0 - 10 mR/h             (0-7.50 uSv/h)                 0-100 CPM

X10] 10 - 100 mR/h (0-10 uSv/h) 0-1,000 CPM

X100]   100 - 1,000 mR/h   (0-100 uSv/h)                 0-10,000 CPM

X0.1] 0.000 - 1 C/sec

X1] 1 - 10 C/sec

X10] 10 - 100 C/sec

X100] 100 - 1K C/sec

X1 THOUSAND] 1K - 10K C/sec

Features:

Front Panel Controls Eight push-button switches:

LIGHT (2): either activates the LCD backlight;

MODE: Changes the display units;

LOG: Stores currently displayed data or changes current location identifier, depending on the currently active logging mode;

RATE/INTEG: Toggles the alphanumeric display between the digitized rate value and the integrate value;

RESP TIME: Changes the response time on the first range or resets the integrate value and elapsed time;

AUDIO: Toggles the click output associated with counting events in the detector, turns Audio on/off, and acknowledges alarm conditions;

ON/OFF: Turns instrument power on/off when permitted by the microprocessor (i.e., when data logging is inactive or all logged data has been read by a PC).

• Dose Reset when detector is turned off an on again.

• Switch Between mR/h Dose Rate to CPM/CPS Count Setting (any probe can be used independent of the Dose Rate Calibration when used in the Count setting).

• Switch Between Rate and Dose (switch between count rate or mR/h rate and accumulated dose or counts).

• Audio is via internal speaker

• BNC Connector

Victoreen 190 Radiation Survey and Count Rate Meter

This survey meter is paired with the Victoreen 489-110 pancake probe with an effective range of upto 500 mR/h (5 mSv/h) and 2,000,000 CPM. Beyond this range the GM tube either saturates or the OVER RANGE enables to notify the user the probe has gone beyond its effective range. The calibration is contained on the EPROM which is housed in the black MHV plugg-in.

This meter can be used with other probes.

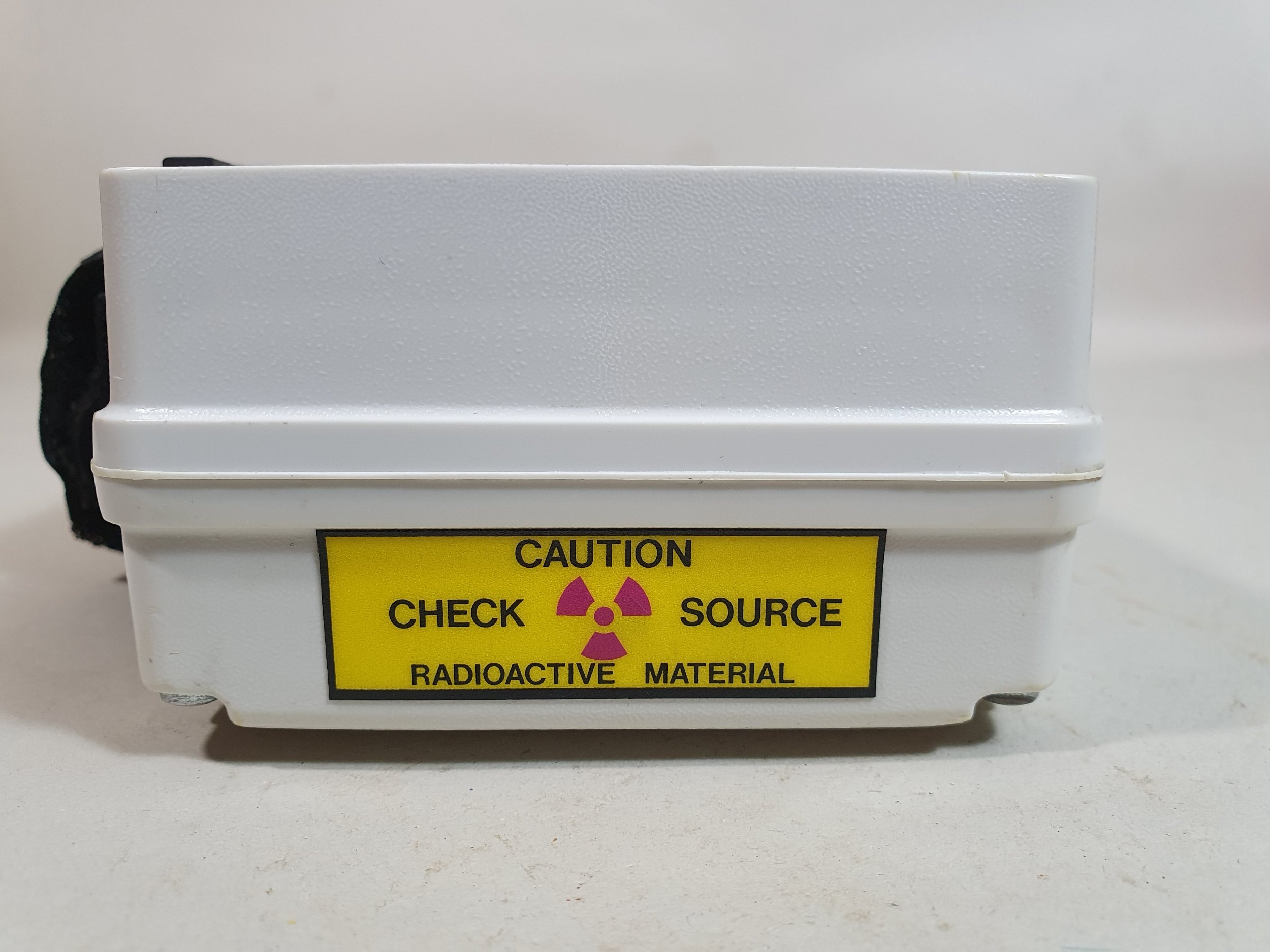

The survey meter is also equipped with a DU operational check source that reads about '1.6 mR/h' ('16 uSv/h') with the probe extended out of its beta shield.

There is a red backlight to illuminate the meter face. Top left red light is out. There are a few scratches on the meter face but this does not impede the readout visibility.

The meter is used, there will be signs of such usage.

The manual can be found here:

https://assets.fluke.com/manuals/190_____omeng0000.pdf
